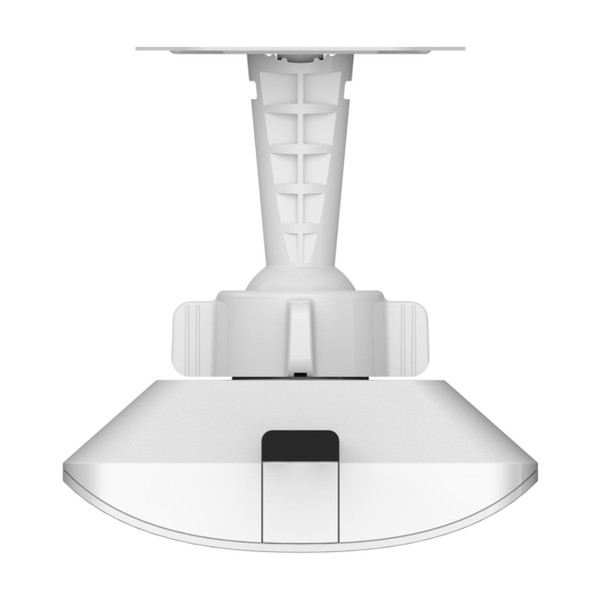

Ruijie Reyee RG-EST350 (V2) 5GHz 15dBi Point-to-Point Wireless Bridge (Pre-Paired Pack)
Ruijie Reyee RG-EST350 (V2) 5GHz 15dBi Point-to-Point Wireless Bridge (Pre-Paired Pack)
Utilising the new high-performance single-band dual-stream 5GHz chip, the RG-EST350 provides up to 5Km in range and 867Mbps secure, wireless 2x2 MU-MIMO transmission rates and significantly enhances the efficiency, stability and range of the network bridge. The RG-EST350 includes 2 devices paired by default and can be deployed without any pre-configuration via the Ruijie Cloud App, which also provides critical features such as viewing the network topology, network user access, fault alarms and configuration modifications, significantly decreasing the amount of site visits required. With Dual Power POE Support this unit provides power redundancy options in case of power failure and the IP54 weather-resistant materials ensure the device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high durability while significantly reducing installation and maintenance costs.
FEATURES:
- Compatible with POE+ RG-E-120(GE)
- 5GHz Dual-stream chip 867Mbps (Max) wireless transmit rate.
- Zero Configuration. One Click Set-Up & Management via the free Ruijie Cloud App. Reduce/Eliminate site visits.
- 15dBi Internal Directional Antenna
- Supports MU-MIMO (Multi-user MIMO) 2X2
- Maximum loading/support. (45x 2MP cameras loading at 3KM, 20x 2MP cameras loading at 5KM)
- PTMP Supported Bridging (ie. 1 recorder, multiple cameras).
- High Durability: IP54 rating provides dust, water, and heat protection for outdoor environments.
- (V-0 Flame-retardant Material )
- POE/Power Supply Redundancy Support (12v and/or 24v)
RG-EST350 V2 Wireless Bridge Overview Video
Wi-Fi Specifications | Description |
---|---|
Wi-Fi Standards | Wi-Fi 5 (IEEE 802.11ac, Wave2) |
MIMO | 2X2, MU-MIMO |
Max. Wireless Speed | 5 GHz: 867Mbps |
Antenna Gain | Directional, 15 dBi |
Weatherproof | IP54 |
Polarization | Horizontal: 31°, Vertical: 14° |
Operating Temperature | -30°C to 65°C (-22°F ~ 149°F) |
Recommended Distance | 5 KM |
Fixed Ports | 2 x 10/100/1000Base-T |
Transmit Power | ≤400 mW(26 dBm) (adjustable) |
Dimensions | 230 mm × 132 mm × 48 mm |
Weight | 0.5 kg |
Certification | CE, RoHS |
Warranty | 3 Years |
General Information | |
---|---|
Manufacturer: | Ruijie Reyee |
Manufacturer Part Number: | RG-EST350 V2 |
Packaging Details | |
Weight: | 2.24 KGS |
Width: | 14.00 (cm) |
Height: | 5.00 (cm) |
Depth: | 23.00 (cm) |
