Improve 4G/5G Connectivity with High-Gain Directional MIMO Performance

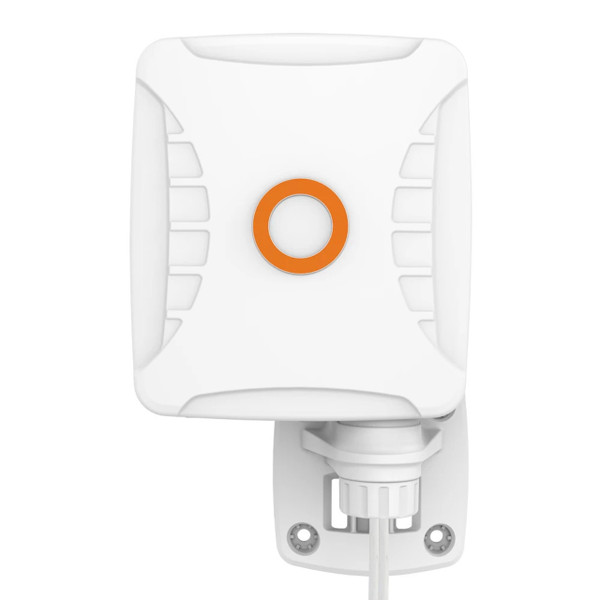

The Poynting XPOL-2-5G is a cross-polarised directional antenna supporting 2x2 MIMO cellular connectivity across 617–960 MHz, 1710–2700 MHz and 3400–4200 MHz. Its wide frequency coverage supports 4G and 5G networks, while peak gain reaches 11 dBi in the 3400–4200 MHz band. Advanced metamaterial technology and a ±45° cross-polarised configuration support consistent directional performance for fixed wireless access, residential, commercial, industrial, agricultural and remote connectivity applications.
Key Features
- Wideband 4G/5G Coverage: Operates across 617–960 MHz, 1710–2700 MHz and 3400–4200 MHz frequency ranges for broad cellular network compatibility.
- Up to 11 dBi Gain: Delivers maximum gain of 9 dBi at 617–960 MHz, 8.5 dBi at 1710–2700 MHz and 11 dBi at 3400–4200 MHz.
- 2x2 MIMO Configuration: Two cross-polarised antenna elements within a single enclosure support MIMO connectivity and LTE/5G performance.
- Directional Antenna Design: Focuses reception and transmission towards the cellular network, making it suitable for fixed installations where the antenna can be aimed towards the serving tower.
- ±45° Polarisation: Cross-polarised antenna configuration supports modern cellular MIMO systems.
- Wall or Pole Mounting: Supports both installation methods using the included pole/wall mounting bracket.
- IP65 Protection: Weather-resistant enclosure supports indoor and outdoor installations and is rated for protection against dust and water ingress.
- UV-Stable ASA Radome: Durable brilliant white enclosure is manufactured from UV-stable ASA for exposed installations.
- Wide Operating Temperature: Rated for operation from -40°C to +80°C.
- High Wind Resistance: Antenna wind survival is rated up to 250 km/h when installed with the optional BRKT-030 bracket; the included Z-bracket is rated up to 160 km/h.
Suitable for fixed wireless access, cellular internet connectivity and signal improvement across urban, rural, agricultural and commercial environments, the directional configuration allows the antenna to be positioned towards the required cellular network.
