Nextivity

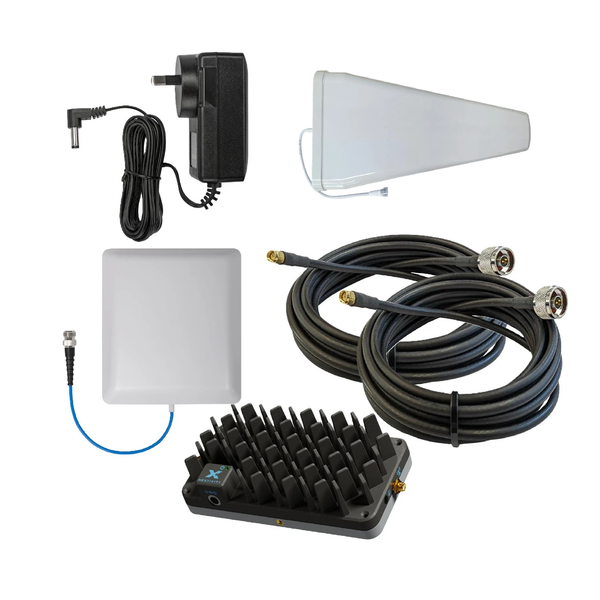

The Nextivity CEL-FI ROAM R41-VB Small Building Wideband LPDA Pack with Indoor Wall Mount Panel Antenna is configured to improve 4G voice and data performance inside small buildings and fixed locations where mobile coverage is weak or inconsistent. The system enhances available outdoor cellular signal and redistributes improved coverage throughout the indoor area, supporting more consistent calling, messaging, and data connectivity.
Combining intelligent signal management with high system gain, this configuration supports improved cellular coverage where existing indoor reception is limited. The wall-mounted panel antenna provides a practical indoor signal distribution option for small fixed premises.
| Product Specifications | |
|---|---|
| Supported Networks | 4G |
| Supported Frequency Bands | 4G 700MHz Band 28, 4G 1800MHz Band 3 |
| Maximum Downlink Output Power | 0dBm (1800MHz), 3dBm (700MHz) |
| System Gain | Up to 100 dB |
| Relay Bandwidth | Up to 20 MHz |
| Power Input | 11.5 to 15 VDC |
| Operator Switching | Not Permitted |
| Installation Type | Plug And Play Mobile |
| General Information | |
|---|---|
| Carrier: | Spark |
| Donor Antenna: | Directional |
| Server Antenna: | Wall Mounted |
| Packaging Details | |
| Weight: | 3.32 KGS |
