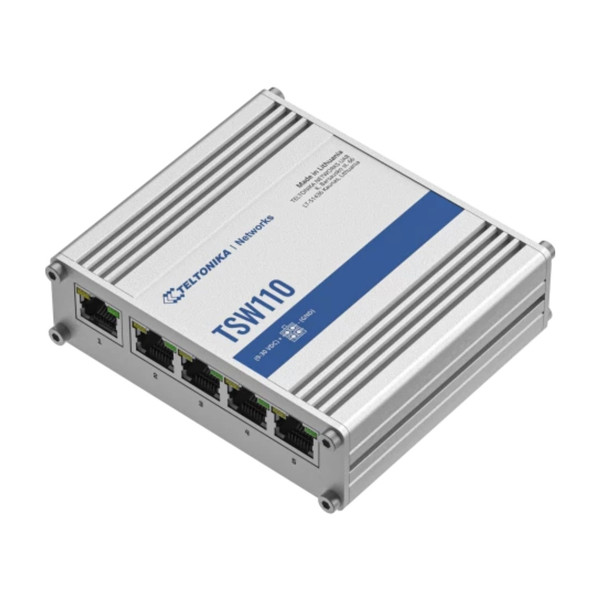

The Teltonika TSW110 is an unmanaged Layer 2 switch designed to meet the growing demands of small to medium-sized networks. Equipped with five 10/100/1000 Mbps Ethernet ports, the TSW110 ensures fast and reliable data transmission, ideal for business environments where uninterrupted connectivity is essential. Its compact design and ease of deployment make it an excellent choice for users seeking straightforward networking solutions without the need for complex configurations.
Key Features:
- 5x 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX crossover
- 4-pin industrial DC power socket
- Passive PoE capability on ETH1 port
- Non-blocking 10 Gbps bandwidth
- 128 KB packet buffer
- Supports jumbo frames up to 9216 bytes
- Compact aluminium housing
- IP30 rating
- Mounting options: DIN rail, wall mount, flat surface (additional kit required)
- CE, UKCA, and EAC certified
Seamless Ethernet Connectivity
With support for auto MDI/MDIX crossover and compliance with multiple Ethernet standards, including 802.3i, 802.3u, 802.3ab, and 802.3x, the TSW110 provides versatile Ethernet connectivity. It supports gigabit speeds on all five RJ45 ports, ensuring efficient communication and data transfer across devices, making it perfect for both office and industrial applications.
Power Over Ethernet Flexibility
The TSW110 supports passive PoE via its ETH1 port, with a power input range of 9-30 VDC, allowing you to power up compatible devices directly through the Ethernet cable. Although it is not compatible with IEEE802.3af/at/bt standards, this passive PoE feature offers a flexible power solution for various networking setups, reducing the need for additional cabling.
Durable Industrial Design
Constructed with a full aluminium housing, the TSW110 is built for industrial applications, featuring a robust design that ensures longevity in demanding environments. Its IP30-rated casing provides protection against solid objects, making it suitable for a wide range of installation scenarios. It also supports various mounting options, including DIN rail, wall mounting, and flat surfaces.
Optimised for Efficiency
The TSW110 features low power consumption, operating at less than 1.8 watts, ensuring energy efficiency without sacrificing performance. The device’s non-blocking bandwidth of 10 Gbps further enhances network efficiency by allowing all connected ports to communicate at full speed simultaneously. Its packet buffer of 128 KB ensures smooth data handling even under heavy network loads.
Easy Installation and Management
Designed for simplicity, the TSW110 requires minimal setup, making it an ideal plug-and-play solution for users who need immediate functionality without technical complexity. With status LEDs for power and Ethernet, users can quickly monitor the operational status and network connectivity, ensuring fast troubleshooting if necessary.
Wide Temperature Range and Certifications
The TSW110 is designed to operate in extreme conditions, with an operating temperature range of -40 °C to 75 °C and humidity tolerance of 10% to 90% non-condensing. This switch is fully certified for global markets, including CE, UKCA, FCC, and RCM, providing reliable operation and regulatory compliance in a wide variety of settings.
