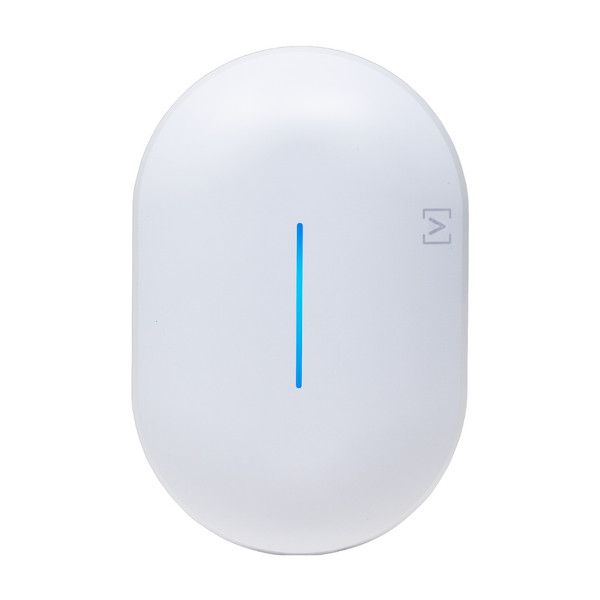

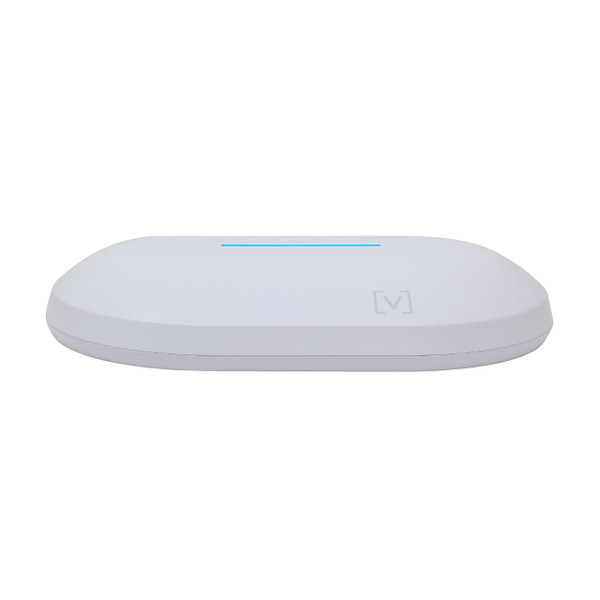

Alta Labs AP6 PRO Enterprise Access Point, WiFi 6, 4x4, Cloud Managed
Alta Labs AP6 PRO Enterprise Access Point, WiFi 6, 4x4, Cloud Managed
The Alta Labs AP6 PRO Enterprise Access Point redefines the standard for high-performance wireless networking. Embrace the future of connectivity with its cutting-edge WiFi 6 technology, equipped with 4x4 Multiple-Input Multiple-Output (MIMO) capabilities and effortless cloud management. With WiFi 6, this access point brings unprecedented speed and efficiency to your enterprise network. Benefit from up to 9.6 Gbps aggregate data rates, enabling seamless access for multiple users and devices simultaneously. Its Orthogonal Frequency Division Multiple Access (OFDMA) and Target Wake Time (TWT) features further optimize network efficiency, reducing latency and increasing throughput even in densely populated environments. The 4x4 MIMO configuration enhances signal coverage and allows the AP6 PRO to support four spatial streams, ensuring exceptional data transfer rates for both upload and download. Maximize productivity with improved throughput and reduced packet loss, ideal for bandwidth-hungry applications like HD video streaming and data-intensive tasks.
Key Features
- WiFi 6 Technology: Offers 4x4 MU-MIMO and 6.3 Gbps total capacity for faster and more efficient wireless communication.
- Advanced Antenna Design: Provides superior range and performance, outpacing traditional 2x2 APs.
- IP54 Rating: Ensures protection against dust and water spray, suitable for indoor and sheltered outdoor use.
- Bluetooth Setup: Simplifies installation and management via the Alta Labs mobile app.
- Scalable Cloud-Based Management: Manage multiple sites effortlessly with a high-availability cloud interface.
- Deep Packet Inspection (DPI) Engine: Built-in content filtering without additional hardware.
- AltaPass™ Technology: Multi-password functionality for varied access levels on a single SSID.
- Hotspot Functionality: Create custom local hotspots with ease.
Why Choose the A6-Pro Access Point?
The A6-Pro Access Point delivers exceptional WiFi performance, advanced management features, and robust protection, making it the ideal solution for both residential and commercial settings. With its user-friendly setup and versatile mounting options, the A6-Pro ensures reliable connectivity and seamless network management.
Model Comparison | ||
---|---|---|
Features | A6 | A6-Pro |
WiFi 6 | ✓ | ✓ |
Bluetooth (For Easy Adoption | ✓ | ✓ |
Content Filtering | ✓ | ✓ |
PoE+ | PoE+ | PoE+ |
2.4 GHz MIMO | 2 x 2 | 2 x 2 |
5 GHz MIMO | 2 x 2 | 4 x 4 |
Max WiFi Throughput | 3.0 Gbps | 6.3 Gbps |
4096 QAM | - | ✓ |
IP54 RATED | - | ✓ |
MECHANICAL | |
Dimensions | 190 x 125 x 32 mm (7.5 x 4.9 x 1.25") |
Weight | 0.4 kg (0.9 lbs) |
Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |

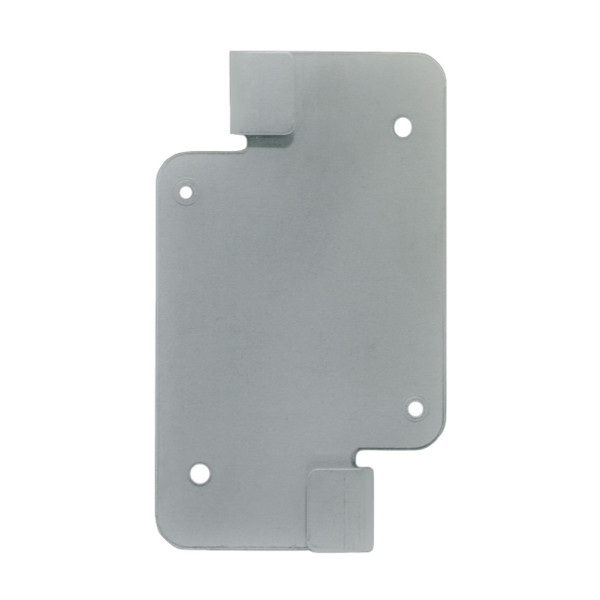

Mount Material | Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |
Weatherproofing |
IP54 |
HARDWARE | |
Network Interface | Ethernet, WiFi, Bluetooth |
Management Interface | (1) GbE RJ45 Port |
Button(s) | Reset/Factory Reset |
LED | Blue, White |
Power Method | PoE+ |
Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
Supported Voltage Range | 42.5-57V DC |
Power Consumption | 25W Max, 7 - 15W Typical @ 23° C (73° F) |
Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS |
MIMO | 5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA 2.4 GHz: 2 x 2. DL/UL MU-OFDMA Explicit TX beam-forming |
Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps |
Antenna Gain | 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi |
Mounting | Wall, ceiling, drop-ceiling, table top |
Operating Temperature | -30 to 60° C (-22 to 140° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
SOFTWARE | |
WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
Roaming | 802.11r/k/v |
Wireless Security | WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
Multi-BSSID | Supported |
VLAN | 802.1Q |
Advanced QoS | 802.11e |
Guest Traffic Isolation | Supported |
Concurrent Clients | 350+ |
Zero Wait DFS | Yes |
Intelligent WiFi Scheduling | Yes |
Hotspot Functionality | Yes |
Scalable To Stadiums | Yes |
Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
SUPPORTED DATA RATES | |
802.11a/g | 6 Mbps to 54 Mbps |
802.11b | 1 Mbps to 11 Mbps |
802.11n | 6.5 Mbps to 600 Mbps (Up to MCS 31) |
802.11ac | 6.5 Mbps to 3.4 Gbps (Up to MCS 9) |
802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13) |
Coverage
General Information | |
---|---|
Manufacturer: | Alta Labs |
Manufacturer Part Number: | AP6-PRO |
Packaging Details | |
Weight: | 0.40 KGS |
Width: | 12.00 (cm) |
Height: | 19.00 (cm) |
Depth: | 3.00 (cm) |
